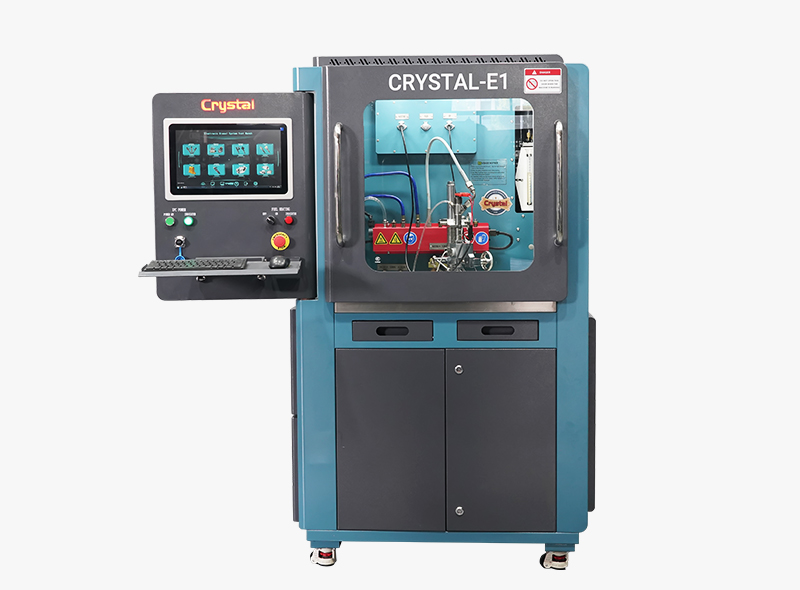

The CRYSTAL-E1 new generation high pressure common rail injector test bench is a special equipment for testing high pressure common railinjectors that meet the requirements of high rail pressure, high precision and high stability.

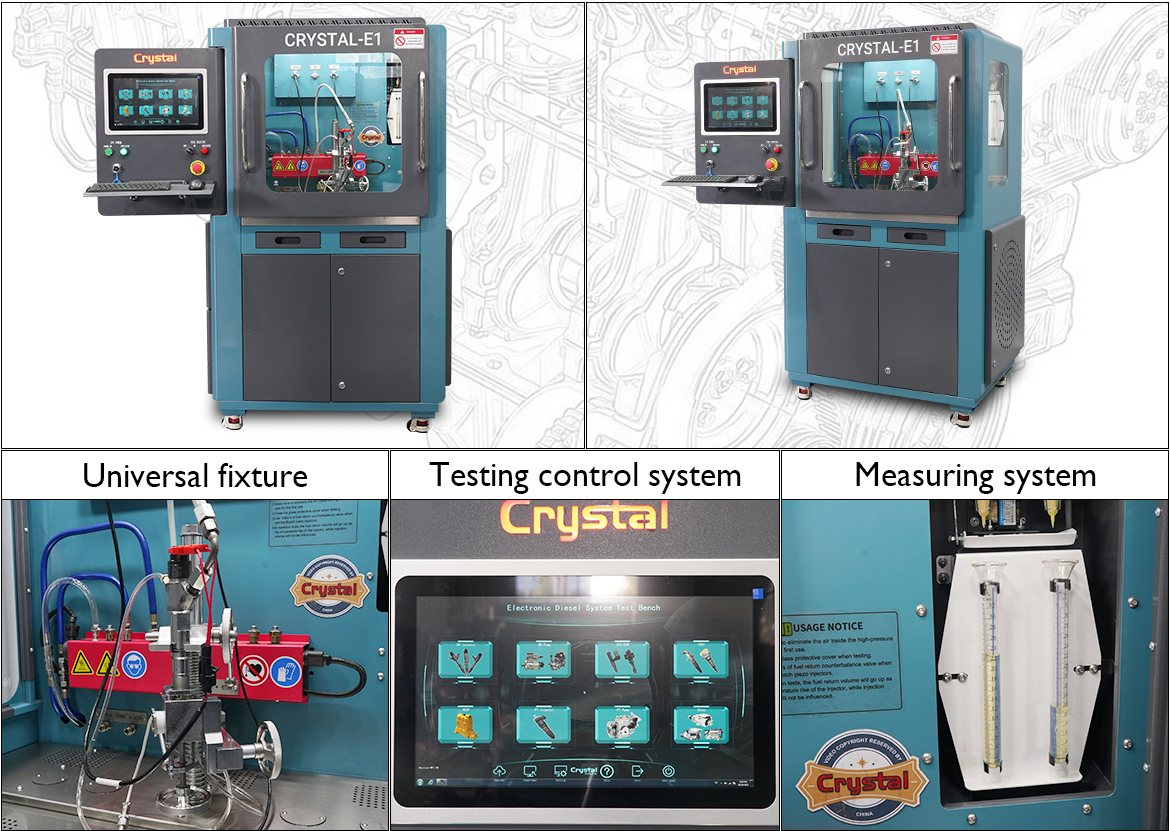

Features
1. Test a single common rail injector (rail pressure control range: 0-2000 bar)
2. Test two common rail injectors simultaneously (rail pressure control range: 0-2000 bar).
3. Test four common rail injectors simultaneously (rail pressure control range: 0-2000 bar).
4. Test six common rail injectors simultaneously (rail pressure control range: 0-2000 bar).
5. Test a single common rail injector (rail pressure control range: 0-2500 bar).
6. Test two common rail injectors simultaneously (rail pressure control range: 0-2500 bar).
7. Test four common rail injectors simultaneously (rail pressure control range: 0-2500 bar).
8. Test six common rail injectors simultaneously (rail pressure control range: 0-2500 bar).
Specifications
◉Supply voltage: 380V3ph(optional 220V3ph)
◉Main Motor Power: 7.5kW (2500bar rail pressure configuration)/5.5kW (2000bar rail pressure configuration)
◉Oil Temperature Control: Heater and forced circulation air cooling system
◉Temperature Control Range: 40°C ±2°C
◉High-Pressure Common Rail Pump: BOSCH CP4.2 (2500bar rail pressure configuration) BOSCH CP3.3 (2000bar rail pressure configuration)
◉Pressure Control Range: 0-2500bar (high-pressure configuration), 0-2000bar (normal high-pressure configuration)
◉Noise Level: <75dB
◉Test Fuel Tank Capacity: 40L
◉Machine Dimensions: 1050*745*1770mm
