Common rail test bench is hero of modern diesel engineering

18 Aug 2025

In the world of modern diesel engines, precision is everything. Gone are the days of simple mechanical injectors. Today's high-performance, low-emission engines rely on the incredibly precise and high-pressure common rail fuel system. But how do we ensure that the fuel injectors and pump are performing flawlessly before they ever reach an engine?The answer lies in a critical piece of equipment is the common rail test bench.

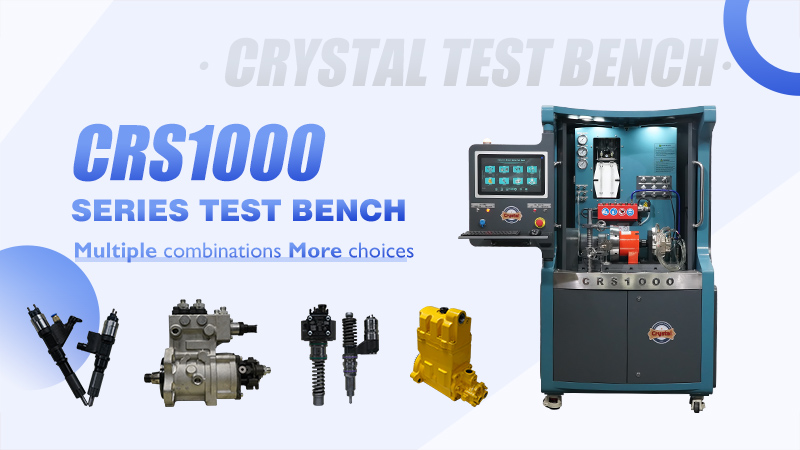

common rail test bench is a sophisticated diagnostic and calibration machine designed specifically to test, validate, and repair common rail fuel injectors and high-pressure pumps. It simulates the exact operating conditions of a real engine—generating extreme pressures and precisely controlling fuel flow and electrical signals. Just as doctors use specialized equipment to diagnose a patient's heart, engineers use a test bench to diagnose the "health" of an injector.

Common rail test bench is very important. The move towards stricter emission regulations (like Euro 6/7 and EPA standards) and the demand for better fuel economy mean that injectors must operate with microscopic accuracy. The smallest deviation can lead many problems. Increased emissions, poor spray pattern or leakage causes unburnt fuel. Reduced performance, loss of power and rough idling. Engine damage, dripping injectors can wash away lubrication on cylinder walls, leading to severe damage. Test bench is the only way to verify an injector's performance off-engine with absolute precision, ensuring it meets the manufacturer's original specifications. Which tests are performed on a common rail test bench? Leakage test, opening pressure & back-leakage test, flow rate test (the most critical), spatter pattern analysis, electrical function test.

Common rail test bench is hero of modern diesel engineering

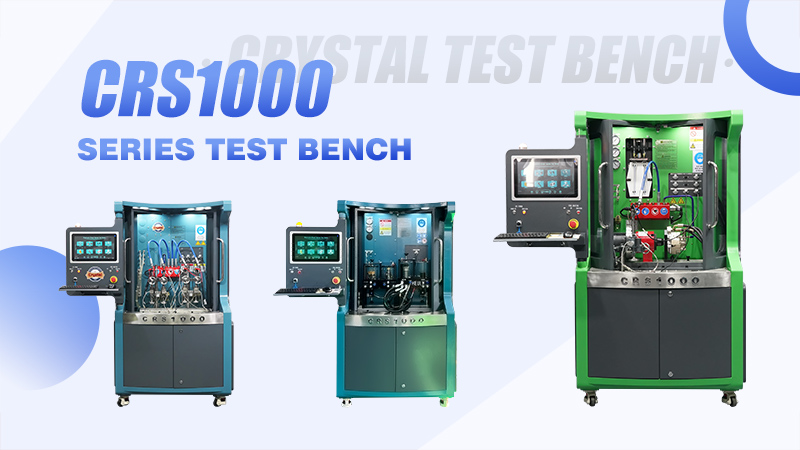

Today's common rail test bench are a far cry from old mechanical units. They are fully computerized, integrating sensors, high-pressure pumps, and advanced software. Technicians can run programmed test plans for specific injector models. Results are instantly compared against OEM specification databases, giving a clear pass/fail diagnosis. Every test result is stored, creating a traceable history for each component, which is vital for quality control and auditing. The bench can often be used to electronically calibrate or "encode" new injectors so they communicate correctly with the engine control unit (ECU).

While the common rail injector itself is a marvel of precision engineering, it would be useless without the technology to maintain it. The common rail test bench is the essential enabler of performance, efficiency, and reliability in modern diesel engines. It truly is the unsung hero working behind the scenes to keep our world moving.
